WT 251 light
Art.-Nr. 03-52

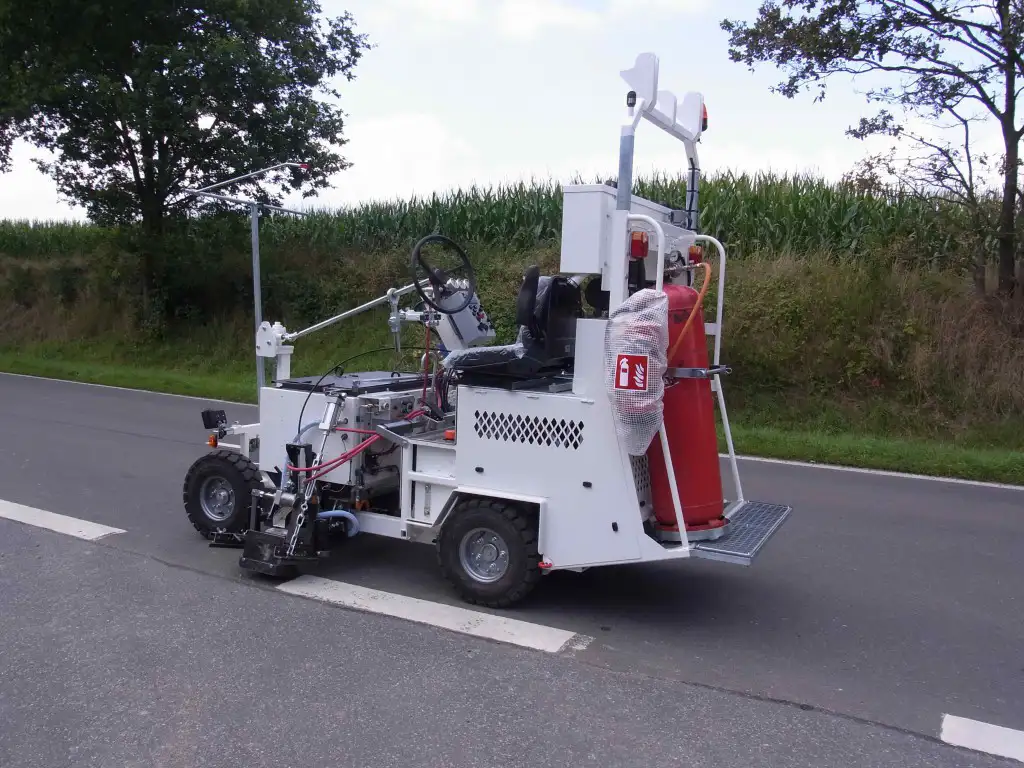

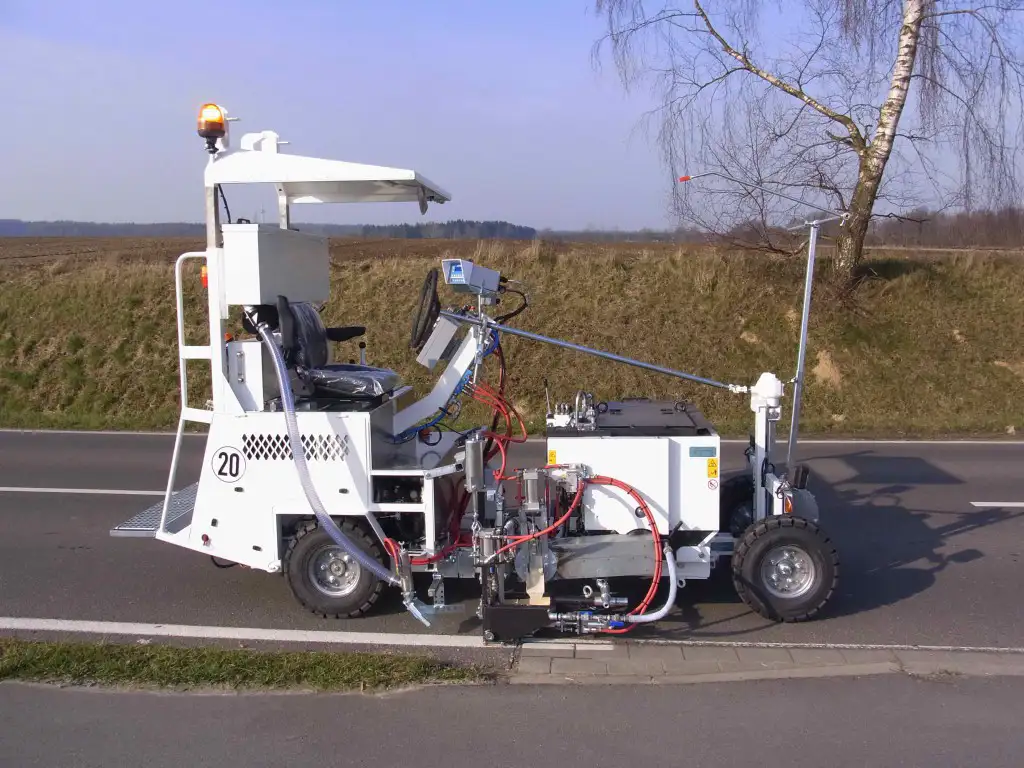

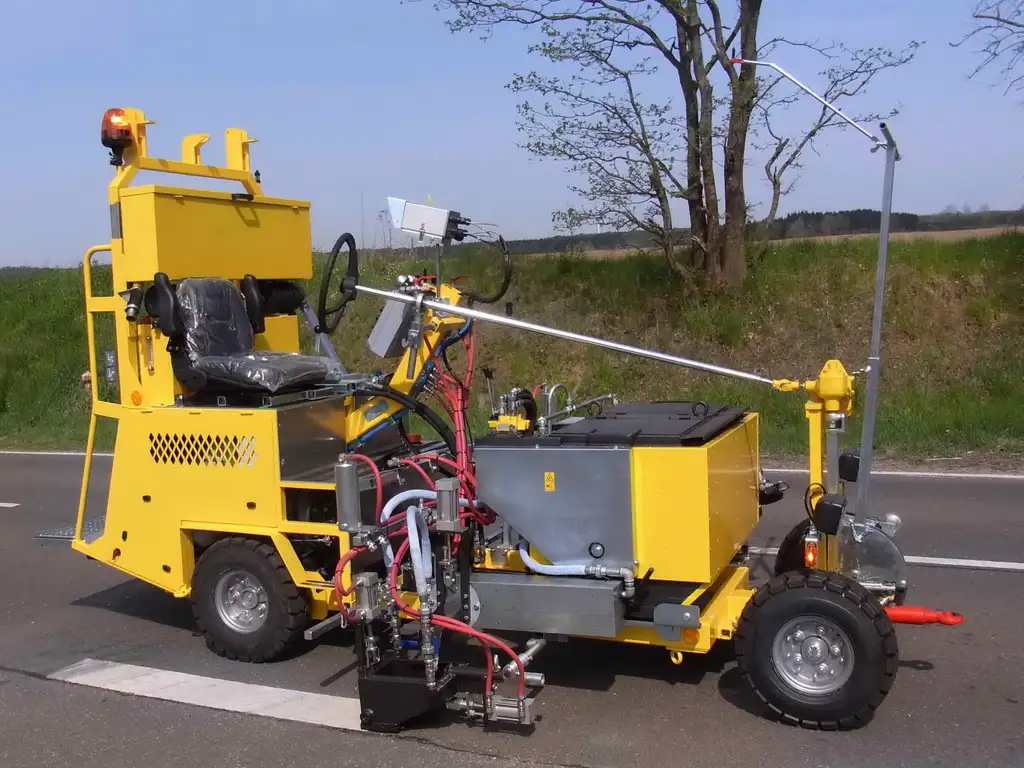

Road marking machine for thermoplastic
| Machine Type | Road marking machine WT 251 light |
| Engine | Kubota V1505, 30 HP (22 kW) |
| Fuel | diesel, capacity 34 liter |
| Electrical system | 12 V, battery 66 Ah |
| Steering | strong standard mechanical steering |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels | front: 6.00-9 12PR, 5 hole-rim / rear: 6.00-9 12PR, 5 hole-rim |
| Compressor | 2-cylinder Boge compressor Typ SK 26, effective air supply 1060 l/min, mechanically driven by poly-v-belt |
| Operating air pressure | 7 bar, silenced safety valve |
| Thermoplastic container | 225 ltr., with agitator, other container capacities on request |
| Thermal oil heating | on request gas / diesel |

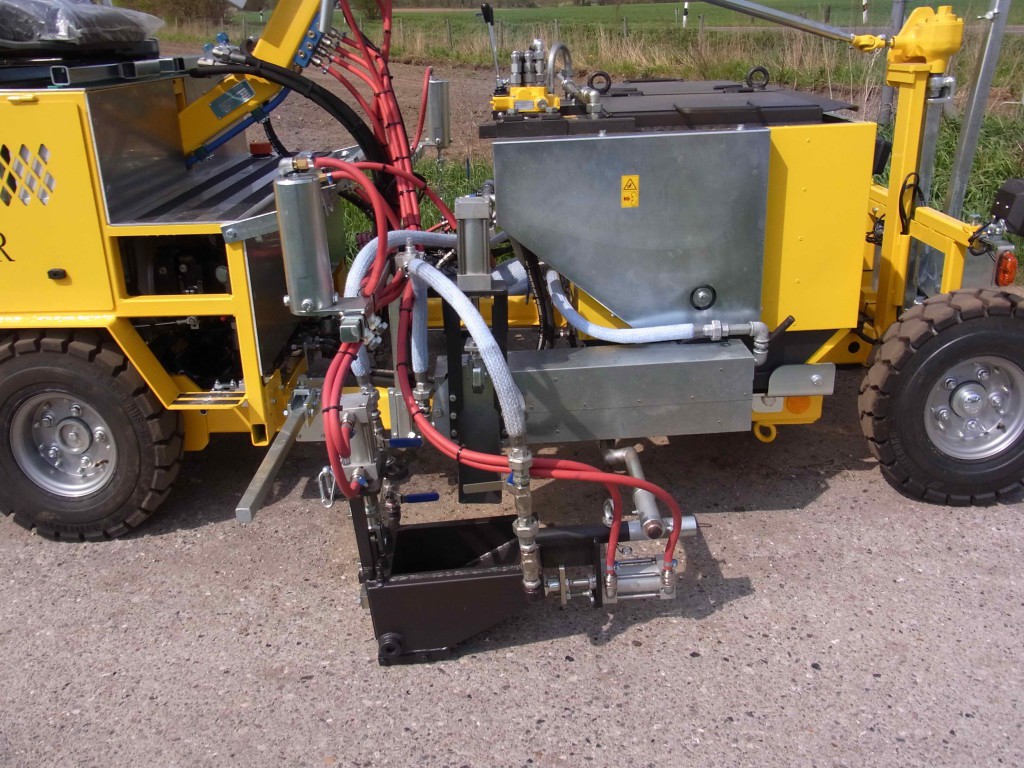

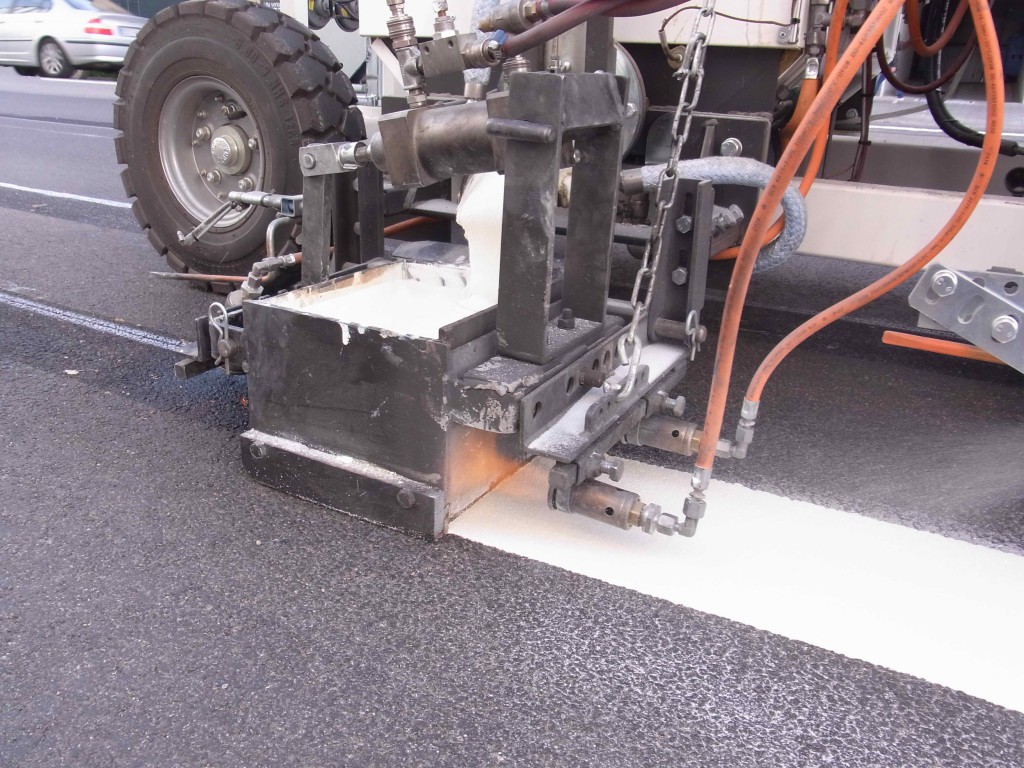

| Marker unit | screed box |
| Additional equipment | on request, profiles |
| Glass bead equipment | on request, metering bead dispenser up to 300 mm |
| Empty- / total weight | approx. 1300 kg / 2300 kg |
| Dimensions Length x width x height | approx. 3,90 m x 1,25 m x 1,85 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
