WTE 1500
Art.-Nr. 01-09

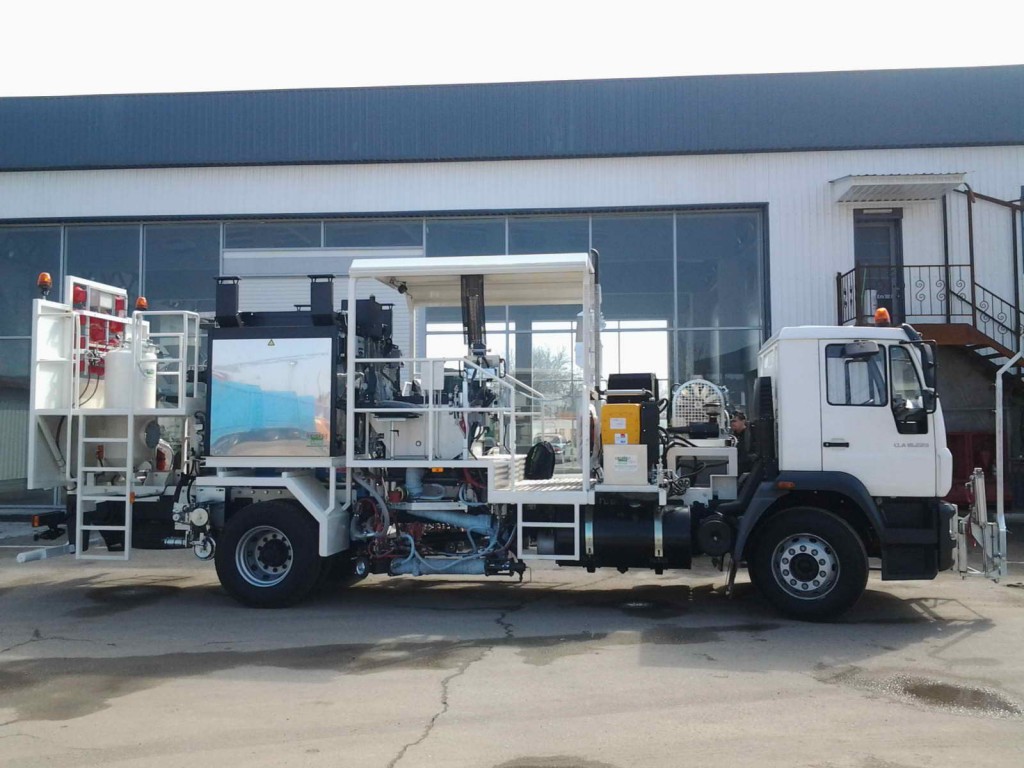

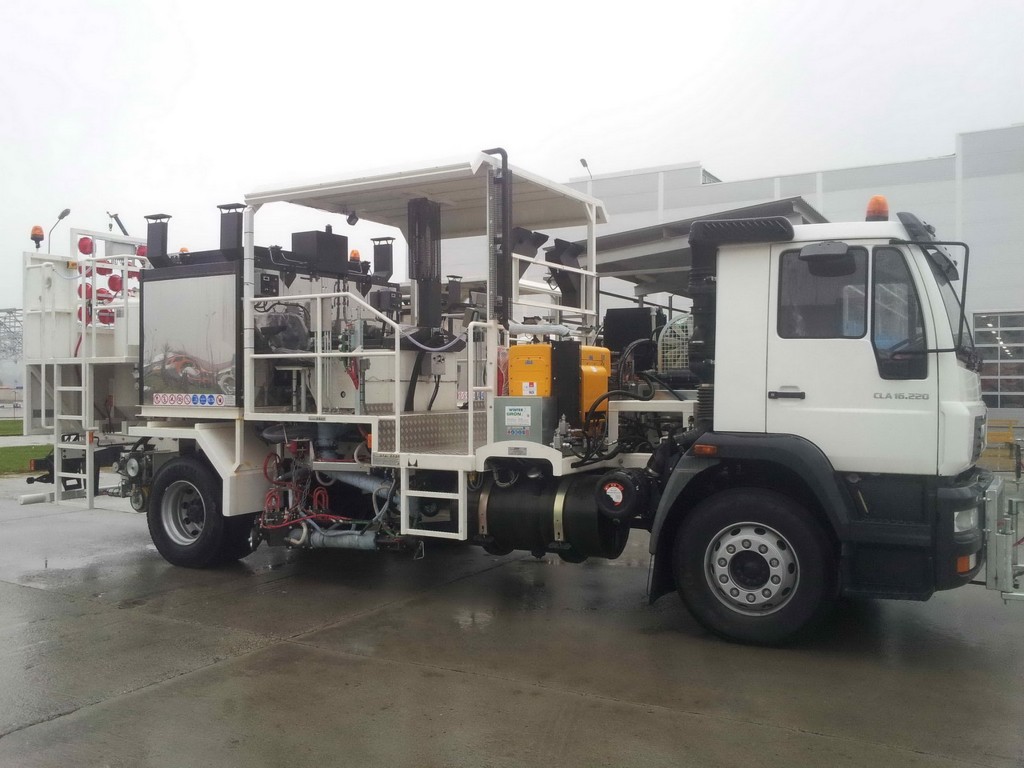

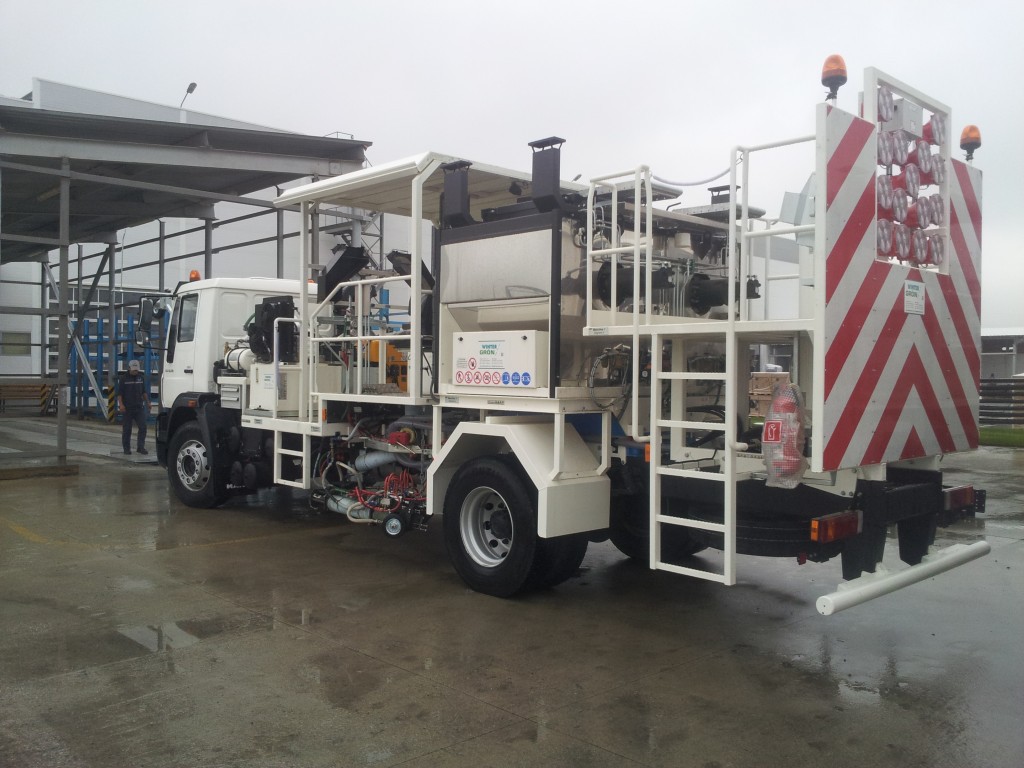

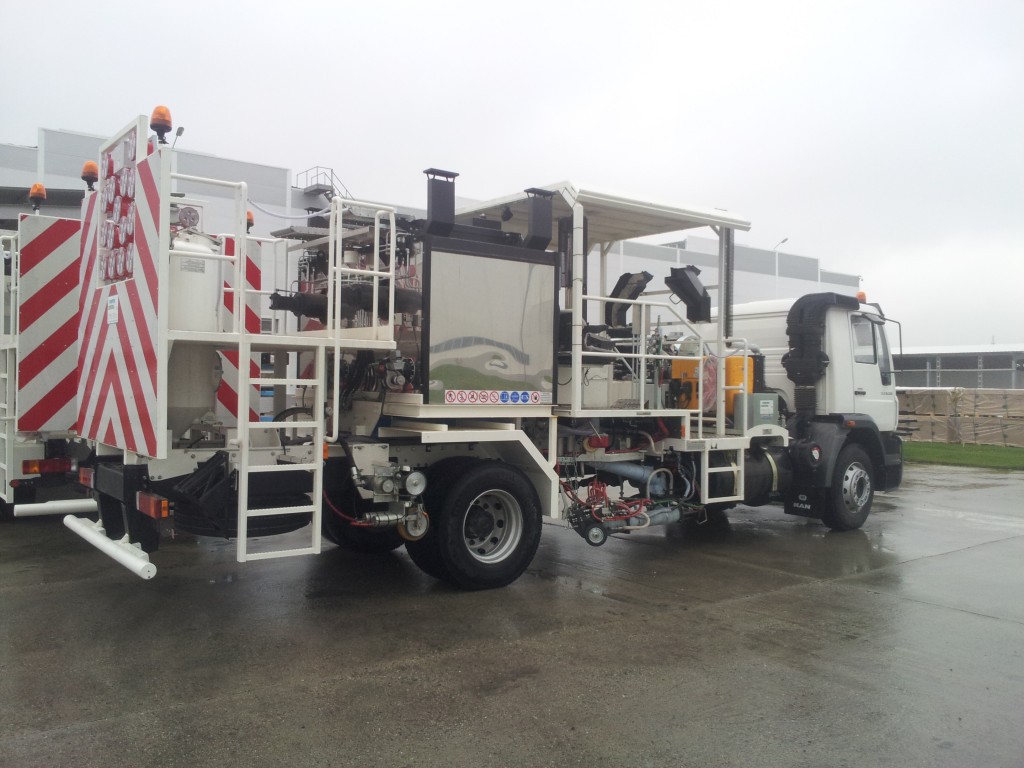

Road marking truck
| Machine type | Road marking truck WTE 1500 |
| Truck type | MAN CLA 16.222 |
| Wheel base | 4300 mm |
| Line guide | connected to stearing, pneumatic lifting |
| Compressor | Boge, effective air supply 1,5 m³/min at 7 bar |
| Thermoplastic preheater | 2x 500 ltr., with agitator |
| Thermoplastic container | 450 ltr., with agitator |
| Thermal oil heating | on request gas or diesel |
| Hydraulic power station | Hatz 3L41C, supersilent |
| Glass bead pressure tank | 300 ltr., upright mounted |
| Extruder | right and left hand side, automatic thickness control |
| Extruder heads | on request, also multi flap extruder heads |
| Outrigger / marker units | right and left hand side, mechanically foldable pneumatic lifting |
| Operators section | right and left, near outrigger, panel with all necessary instruments |
| Glass bead equipment | on request |
| Empty- / total weight | approx. 12000 kg / 16000 kg |
| Dimensions Length x width x height | approx. 9,20 m x 2,50 m x 3,50 m |
Right of technical modifications reserved |
State of art: 14.03.2016_en |
