WT 120
Art.-Nr. 04-03

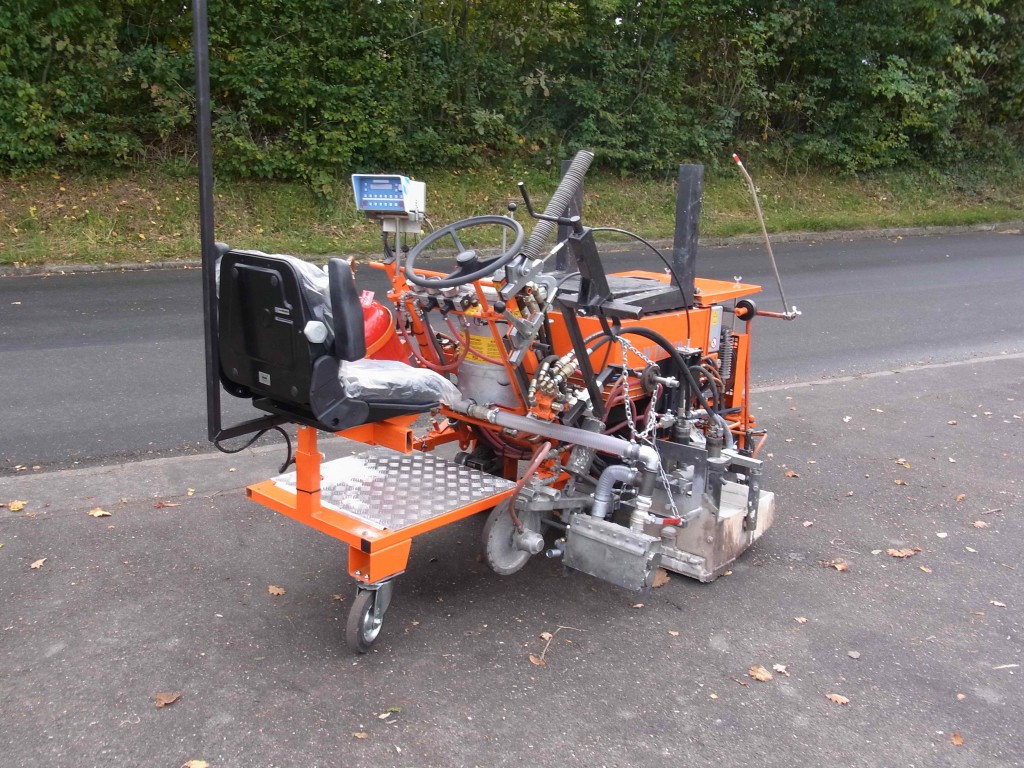

Hand-guided thermoplastic applicator
| Machine Type | Hand-guided thermoplastic applicator WT 120 |
| Engine | YANMAR, 7 hp (5,1 kW) |
| Fuel | diesel, capacity 3,5 liter |
| Electrical system | 12 V, battery 35 Ah, e-start |
| Steering | mechanical steering with steering wheel acting on front axle |
| Drive / brake system | hydrostatic, also acting as service brake, hydraulic motor on differential gear axle |
| Wheels | front: solid rubber wheel d=200 mm / rear: solid vulkollan wheel on casted iron rim d=250 mm |
| Compressor | 2-cylinder, effective air supply 360 ltr./min. |
| Operating air pressure | 6 bar, silenced safety valve |
| Thermoplastic container | 120 litres volume, indirectly heated by means of thermal oil, propane gas heating, hydraulically driven agitator |
| Marker unit | on request, thermoplastic pump also available open or closed units |
| Additional equipment | on request, electronic skip line control, pressurized bead tank 25 litres |
| Glass bead equipment | standard: bead container 15 litres, with bead gun 10-30 cm dispensing width |
| Empty weight | approx. 380 kg |
| Dimensions Length x width x height | approx. 2,00 m x 1,00 m x 1,10 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
