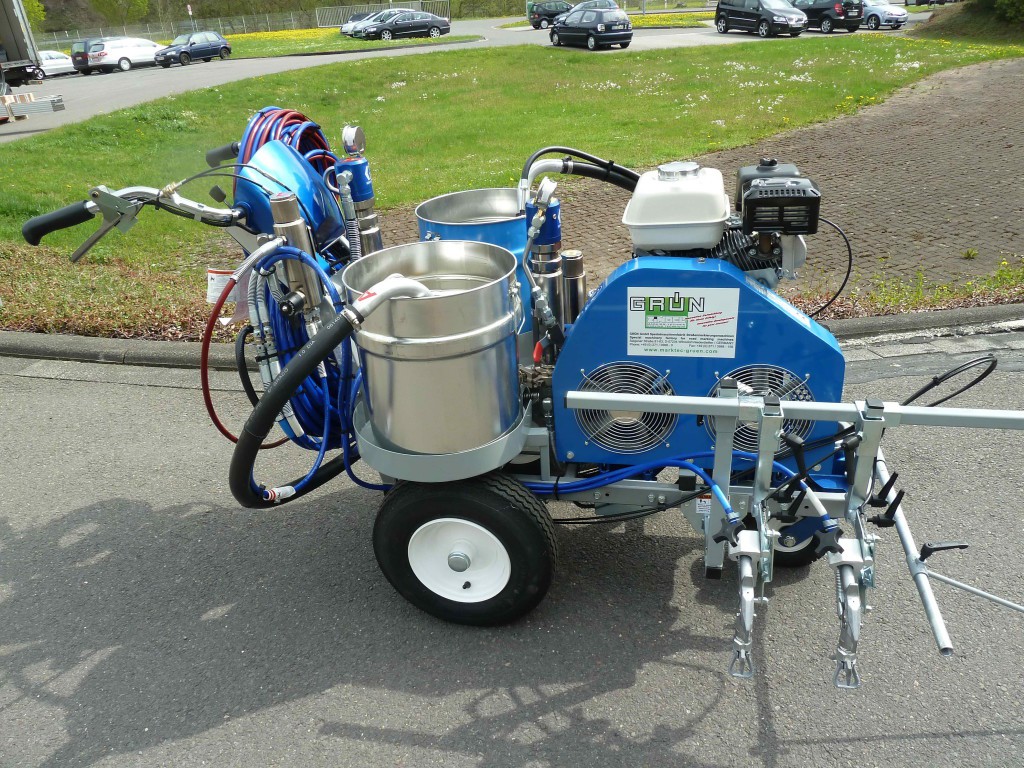

Line Lazer 200 HS-2K
Art.-Nr. 10-07
Hand-guided road marking machine
| Machine Type | Hand-guided road marking machine Line Lazer 200 HS-2K |
| Engine | Honda-GX 160, 5,5 hp (4 kW) |
| Fuel, tank capacity | gasoline, 3,6 litres |
| Electrical system | 12 V, hand starting |
| Steering | swivel wheel, lockable with hand lever |
| Wheels | 3 pneumatic wheels, rear d=400 mm, front d=220 mm |
| Pump capacity | 2x 7,50 ltr./min. (output limited) |
| Operating pressure | max. 230 bar |
| Nozzle size max. | 2x 0,033″ |
| Electronic equipment | for surveillance of pressure, quantity of material and distances |
| Additional equipment | Line Driver, glass bead system |
| Empty weight | approx. 180 kg |
| Dimensions Length x width x height | approx. 1,65 m x 0,70 m x 1,02 m |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
