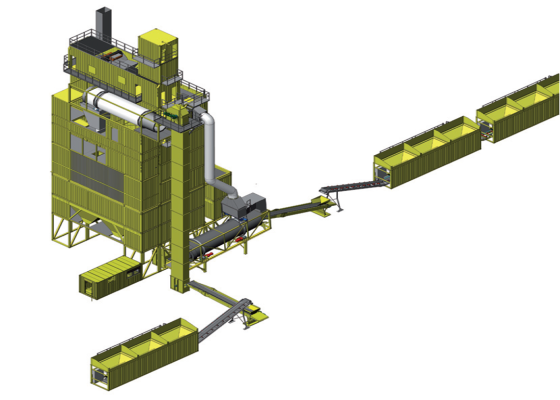

Containerized Asphalt Mixing Plant with a capacity of 400 t/h and conventional vibrating screen technology for mobile as well as stationary use.
| Description | Unit | CSM 5000 |
|---|---|---|
| Screen Decks | Pcs. | 6 |
| Hot stone bin | t | 120 |
| Reclaimed filler silo | t | 60 |
| Batch size | kg | 5.000 |
| Batch cycle time | s | 45 |
| Aggregate temp. Increase | K | 150 |
| Exhaust gas temperature | °C | 90 – 120 |
| Plant capacity | t/h | 400 |
